Tri-star filter bags are available with our welded Polypropylene, Polyester or Santaprene sealing rings, suitability is dependent on your application. Tri-star sealing rings are self-aligning and give superior positive sealing over steel ring bags. Handles are moulded into the top of the ring, giving operators a secure grip when removing the bag.

Carbis filter bags are interchangeable with all industry standard liquid filter bag housings and are manufactured under strict conditions governed by ISO9001:2008 and to food hygiene requirements.

Dimensions range fron 4.12-inch diameter x 8-inch length thru 9-inch diameter x 32-inch length

Product Feature
Efficiency Ratings up to 99.98%... provides absolute rated performance
Fully Welded Construction...eliminates solids bypass
Zero-Bypass Bag Collar...assures an optimum compression seal
Ratings from 0.2 to 600 Microns...absolute or nominal ratings

Product Specification/Models

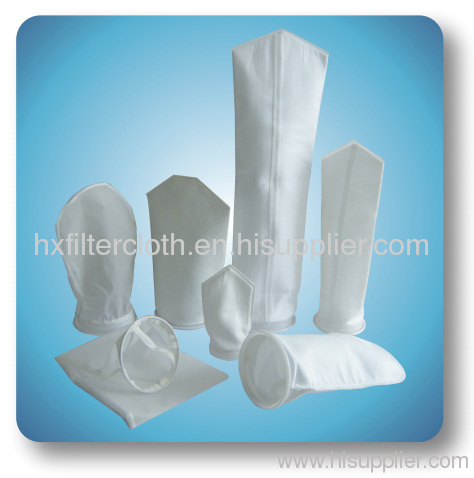

Micron liquid filter bag for industry
1.Size 1# 2# 3# 4# 5#
2.Micron:0.5-300U
3.Ring: plastic or steel snap
4.Sewn or Weld

Material and micron rating
Polypropylene felt Micron rating available in 1, 5, 10, 25, 50, 100 ,200
Polyester felt micron rating available in 1, 5, 10, 25, 50,100, 200

Filter bag filtration micron: 1, 3, 5, 10, 15, 25, 50, 100, 150, 200

Seam Type: Sewn and heatweld

Application
The liquid filter bags can be specially used in water treat ment
system.
Paints & lacquer industry
Wastewater treatment
Pharmceutical industry
Food industry
Chemical industry
Beer, wine & spirit industry
Adhesive
